downdraught dust extraction workbenches
Body

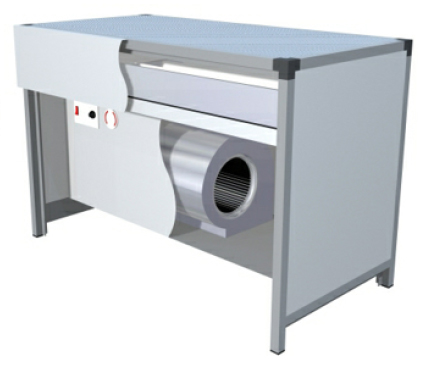

Aluminium Frame with Cast Corners & Plastic Coated Infill Panels. Removable Front Cover for Ease of Maintenance. Kneespace for Occassional Seated Working
Available Filter Configurations
A: Dust
H: Fine Dust
B: Very Fine Dust
L: HEPA Filtered
E: Fume in Low Volumes
S: Solder Fume
C: Dust with Some Sparks
Work Surface
Heavy Duty 3mm Perforated Steel Plate with 4mm dia Perforations, Powder Coated In Multiple Sections on 960 Deep Units
Filter Removal
Quickly & Simply By
Sliding Out Through
the Removable
Front Cover

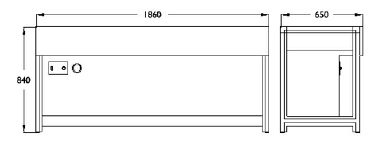

Example of Size: Others Available on Request
EX186584
Fan Type
Forward Curved
Fan Power
Centrifugal 570w
Airflow
3000 m3/h - 1.5m/s at Surface
Dimensions
1860 x 650 x 840mm
Actual Ventilated Area
1800 x 565mm
EX126584
Fan Type
Forward Curved
Fan Power
Centrifugal 550w
Airflow
2000 m3/h - 1.5m/s at Surface
Dimensions
1260 x 650 x 840mm
Actual Ventilated Area
1200 x 565mm
EX066584
Fan Type
Forward Curved
Fan Power
Centrifugal 170w
Airflow
1000 m3/h - 1.5m/s at Surface
Dimensions
660 x 650 x 840mm
Actual Ventilated Area
600 x 565mm
General
Power Supply
240v, Single Phase - 110v Available
Surface Loading
50kg as Standard
Finish
Aluminium Frame with Grey Plastic Coated Panels
Noise Level
63dBa Average Across Range
Dimensions Nominal Specifications Subject to Change
